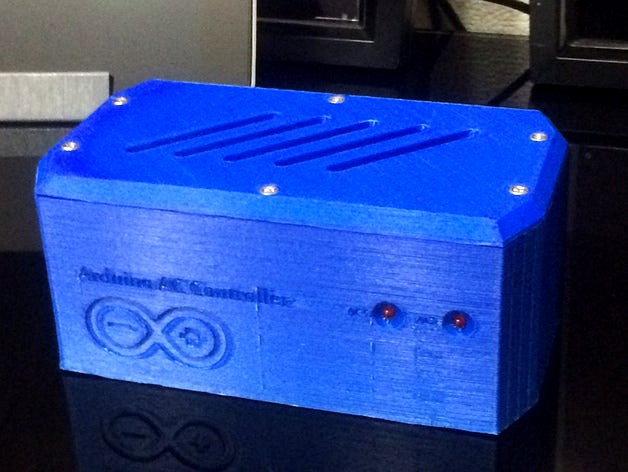

Arduino Ethernet AC Switcher 2CH by TK_DESIGN

Last crawled date: 4 years, 11 months ago

Please do you is not made if you do not understand.
This things dangerous! if it is not made accurate.
Please the insulation of the wiring surely.
Arduino use pins.
AC1 : 8pin
AC2 : 9pin
GND
AC Wiring recommend 20AWG Wire.
Ethernet Shield module W5100 Board
QTY : 1http://www.ebay.com/itm/New-Ethernet-Shield-module-W5100-Board-For-Arduino-2009-UNO-Mega-1280-2560-M21-/161633354092
AC INLET : 703W-00/08
QTY : 1http://www.digikey.com/product-detail/en/703W-00%2F08/Q336-ND/1164207
AC OUTLET : 738W-CX2/01
QTY : 2http://www.digikey.com/product-detail/en/738W-CX2%2F01/Q281-ND/299908
Web page that was in reference.
arduino sketchhttp://www.storange.jp/2012/04/arduinoethernet.html
SSR Switch KIThttp://akizukidenshi.com/catalog/g/gK-00203/
20/06/2015
Parts List Revision.
