Arduino D pad case by MechEngineerMike
by Thingiverse
Last crawled date: 4 years, 7 months ago

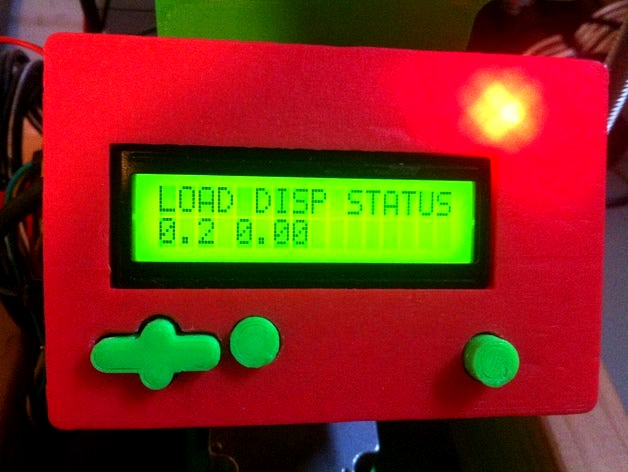

This Arduino D-pad case was originally designed to be attached to the 3D printed linear actuator I shared on here. I've made modifications to the file so that anyone who wanted a general use case for their arduino + keypad/screen could get some use out of it.
Designed specifically for the following parts:Arduino Uno: http://amzn.to/1T7nhseProtoboard Shield: http://amzn.to/1VSnqGa
(also found here: http://tinyurl.com/p6mcd9r)Keypad/Screen Shield: http://amzn.to/1VMqIex
(also on Sparkfun here: https://www.sparkfun.com/products/13293)Optional 40mm cooling fan: http://amzn.to/1MR7rW0
FYI this is the project it was originally designed for: http://www.instructables.com/id/TestrBot-The-300-Universal-Test-Machine/
