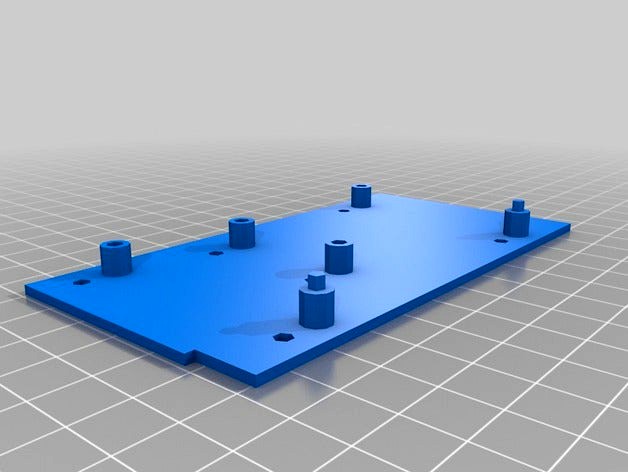

Arduino baseplate for Prusa i3 by unhydrogenator

Last crawled date: 4 years, 7 months ago

Mounting plate to attach an Arduino MEGA2560 to a Prusa i3 single frame printer. The goal was better electrical isolation to prevent short circuits through the screws.
First, the baseplate is mounted to the Prusa i3 aluminum frame using one set of screws. Then the Arduino is mounted with shorter screws into the baseplate's raised posts.
