Anycubic Kossel Trigorilla Stepper Cooler by PedaBot
by Thingiverse
Last crawled date: 4 years ago
I will use it with the short one of https://www.thingiverse.com/thing:2747843
And an Noiseblocker XM2 40x40x10mm Fan

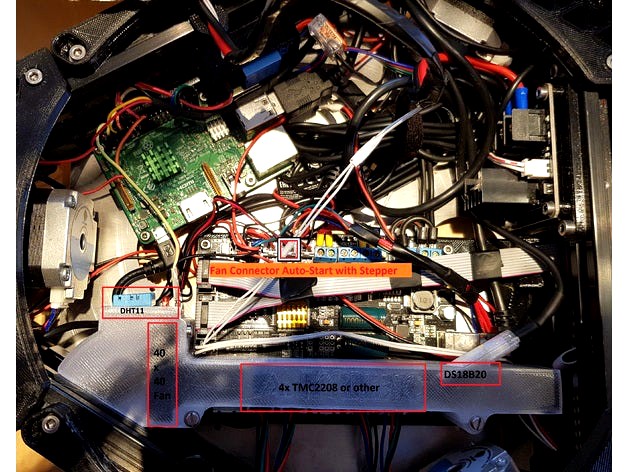

The Function of this Part is Great with my TMC2208. DHT11 TI 39°C and the DS18B20 has at same time 36°C. So the out-air-intake was really great and non of the TMC cut off by over heating. Fan Connection see at the picture!!
Only need some m3 screws:
1x 5mm for DHT11
1x 15mm for Fan fixing
2x 40mm for Cover Mount
V1: deleted
V2: deleted optimized air-input and output
V3: deleted +hole for fan-fixing (M3 screw)
V4: deleted +DHT11 mount (M3 screw)
"DHT11 Temperatur und relatives Feuchtigkeits-Sensor-Modul für arduino"
V5: add "ANYCUBIC" Logo and optimize output...
V6: add mount for DS18B20 (6mm steel housing)
and make it a little smaller to be printable on Kossel Plus.
