Anycubic Chiron Case Cover with Noctua NF-A12x15 Fan Mount
by Thingiverse
Last crawled date: 5 years, 9 months ago

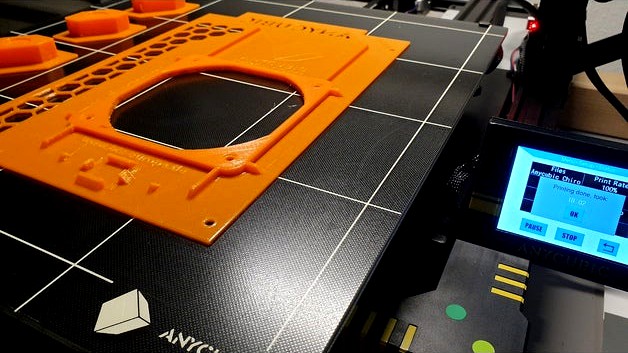

This plate is designed as a cover for the Anycubic Chiron.
The design is chosen so that a Noctua NF-A12x15 fan can be integrated into the plate. Here it is recommended to suck the vent out of the housing.
Furthermore, an "IZOKEE MP1584EN Step Down Buck Converter Module" can be integrated, these are necessary because the Chiron has a 24V network and the fan runs on 12V.
ATTENTION: 12V must be set before the fan is connected!
Depending on the printer settings, this module can even be clamped.
There are also two tabs for cable ties.
Make sure that the cables cannot get into the fan, the Noctua fan replaces the existing fan for the motor drivers.
With the new fan, higher printer feet are required!
The fan position is selected so that BigTreeTech TMC2208 V3.0 can also be installed with a heat sink and cooled well.
A support structure is necessary.
The design is exclusive Anycubic with honeycomb and original lettering.
Have Fun!
(Layer thickness 0.16 mm / printing speed 60 mm / s)
