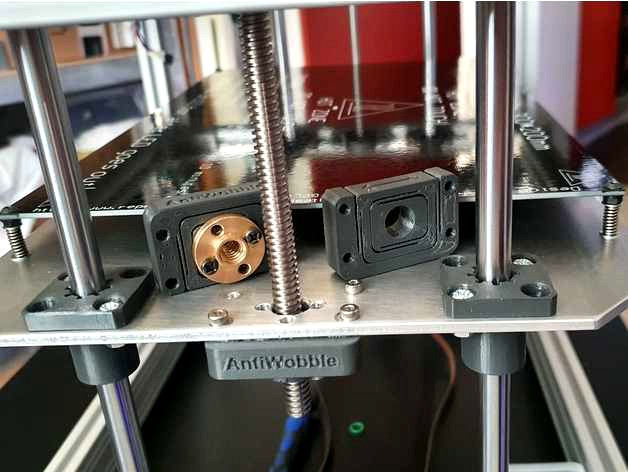

AntiWobble Flexure Mechanism - Simple, Durable, Amazing upgrade! by Amtech
by Thingiverse
Last crawled date: 4 years, 8 months ago
https://www.youtube.com/watch?v=R5gWsnkWItc
This is prototype of my Anti-wobble system for next CoreXY based printer!
This works very well, even parts didn't print well and cracked while hammering inserts, keh
Using this flexure mechanism seems disable all unwanted wedging friction that misalignment causes and it also prevent well any "wobble" to impact print quality!
PETG or similar flexible "spring-like" recovering materials are suitable
Didn't work with tough resin UV printer due those "wings" are too thin for that and only suitable for 0.40mm nozzle FDM unless you make changes.
Additional part! Flexure mechanism pen holder design idea for your plotter printers
