Another Raspberry Pi 4 case
by Thingiverse
Last crawled date: 6 years, 4 months ago

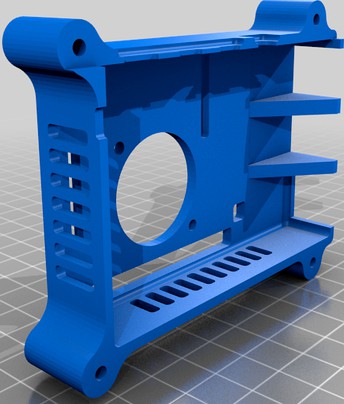

Here is another case for Raspberry PI 4, with holes for 30x30 fan and gios.
I primarily use the PI 4 as a small PC station with Raspbian, and since mine is 4B I needed more cooling, also I placed a 10x10 radiator on the cpu, and the temperatures are around 40-50 C.
Have in mind that everything is made really snug, and you should play with the extrusion
multiplier, mine was at 95%.
For the construction I've used:
x2 M3x12mm bolts for the fan
x4 M3x30mm bolts to fasten the top and bottom parts
x4 M3x12mm bolts to fasten the board to the bottom part
x10 M3 nuts
P.S.
If someone wants to modify the case, I can provide him/her with the cad files.
