Another Pixel 2 XL Case by markwal
by Thingiverse
Last crawled date: 4 years, 8 months ago
I really appreciate the start from Laen on the Pixel 2 XL model. My phone differed from the model in 3 ways which caused the case not to fit as snug as I wanted, which I've adjusted in my copy of the Fusion 360 project:
The fillet around the back face appears to be asymmetric. I modeled it as a chamfer first and then filleted one of the corners
The fillets for the four corners of the phone were 1mm larger on my phone
The volume down button was a few mm lower on my phone
I think also, my phone isn't quite as thick.

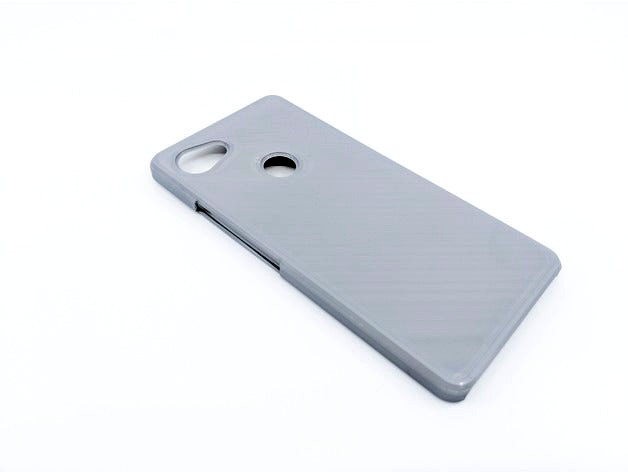

After adjusting these parameters, some of the features for the other cases broke, I adjusted them to remove the errors, but now I imagine they don't match @Laen's intent. But the new component "Yet Another..." that I added is the phone case you see here.
Fusion 360 model: http://a360.co/2ETpxUU
