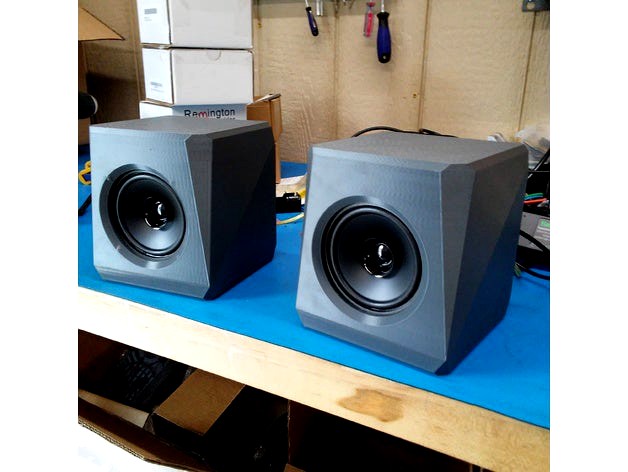

Angular Speaker Box - 4 Inch by StellarisEcho
by Thingiverse
Last crawled date: 4 years, 8 months ago
I remixed this design for the "Angular Speaker Box" made by Chris Loidolt. Big shout out to him as most of the design geometry came from him and his original Thing.
For the speakers, I used 4 Inch replacement speakers made by BOSS Audio: BRS40. Using Solidworks and Chris' design as a reference, I rebuilt most of the original geometry. Some changes were made, but all in all these are still quite similar to the original Angular Speaker Boxes.
I used these Audio Binding Posts to pass the audio signal to the inside of the enclosures.
They fit together nicely and are very hefty.
I have also included a modified front piece file that also includes a circular port, to allow for more bass to come through the speakers. This has not been printed, and I cannot confirm how much of an improvement it will give. However, after listening to the V1 design, it needs some form of a port to allow the bass to escape.
For the speakers, I used 4 Inch replacement speakers made by BOSS Audio: BRS40. Using Solidworks and Chris' design as a reference, I rebuilt most of the original geometry. Some changes were made, but all in all these are still quite similar to the original Angular Speaker Boxes.
I used these Audio Binding Posts to pass the audio signal to the inside of the enclosures.
They fit together nicely and are very hefty.
I have also included a modified front piece file that also includes a circular port, to allow for more bass to come through the speakers. This has not been printed, and I cannot confirm how much of an improvement it will give. However, after listening to the V1 design, it needs some form of a port to allow the bass to escape.
