Anet Extruder Filament Guide CAD remix by yclee126
by Thingiverse
Last crawled date: 4 years, 4 months ago

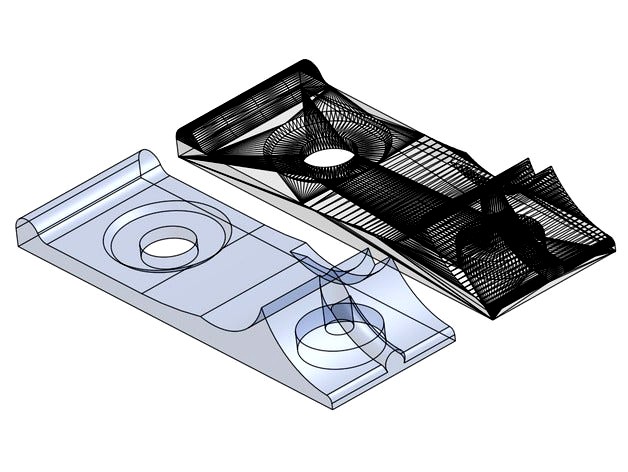

The original .stl file has some flaws for fluent editing, so I remixed it exactly same into cad format.
Attached .stl is from remixed .step, just for a look.
Feel free to edit the .step file!
**If you hear static-like tickle sound in extruder after installing this, try polishing the filament hole of the guide.
Made with Onshape :https://cad.onshape.com/documents/a19a89744697bec72a5c6e5a/w/73b2c9598a3786fa62f15588/e/82f290fbcab61edd2cebf9da
Reference .step surface converted with Freecad.
