Anet A8/AM8 to Hypercube Evolution Upgrade Path - Phase II Remix by heatvent

Last crawled date: 4 years, 8 months ago

BACKGROUND:
See my original conversion of my Anet A8/AM8 to Hypercube Evolution at https://www.thingiverse.com/thing:3268908.
This is "Phase II" of my upgrade where I am adding the following...
24V cheap Chinese power supply (S-400-24)
MK2a 328mmx328mm 24V heated bed
SKR V1.3 32-bit board
TMC2208 silent drivers
Various 3D printed upgrades
BILL OF MATERIALS (PURCHASED):
Qty Description
1 MK2a 328x328 (310x310 heated) bed
4 TMC2208 silent drivers
1 24V 400W 16.5A power supply (S-400-24)
PRINTED PARTS - HYPERCUBE EVOLUTION ANET A8 REMIX PHASE II(this thing):
Qty Filename
1 Control box - I remixed this thing to simplify and make it mountable on 3030 (https://www.thingiverse.com/thing:3732733)
1 Power supply cover - I remixed this but don't recall the original thing
4 Remixed HEVO bed mounts ... made them wider and dual bolt on the sides so you can tight up without the bed thumbscrews getting in the way.

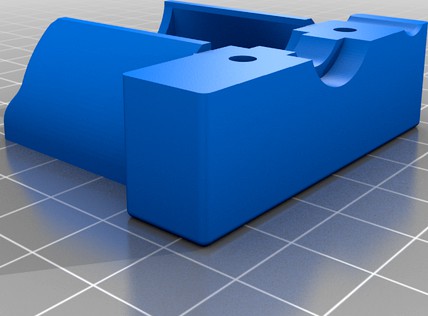

2 Remixed upper Z-axis lead screw mounts ... in addition to the bearing holder I made a wider mount so you could access the bolts without the lead screw getting in the way. This is also a bit beefier as the old one(s) cracked
1 Remixed the extruder mount to accept a 40mm fan and use the bed probe hole to manage wiing
4 I am using a Creality glass bed with the MK2a so created some corner mounts to hold in place
1 Remixed a case for the Anet LCD12864 to be mounted on the 3030 extrusions from this thing (https://www.thingiverse.com/thing:2267628)
NOTE: PARTS TO BE ADDED
