Anet A8 Swing Clamp down Brackets by Beardie7

Last crawled date: 4 years, 4 months ago

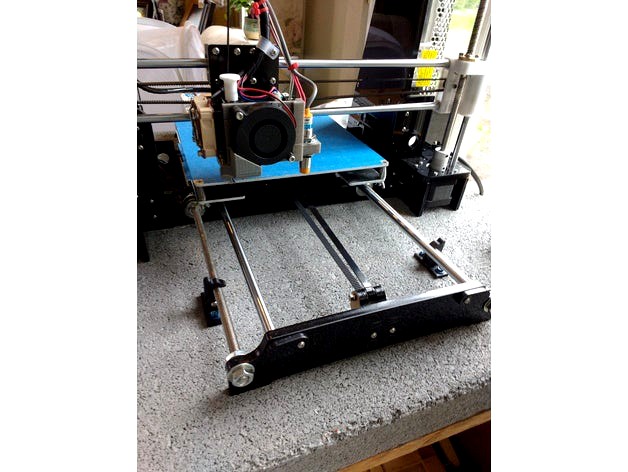

To quiet down my printer I needed it to mount it to a 2'x2' concrete paver, but I didn't want permanent clips. This clips swing over the threaded support rods and have a detent lock. It has lowered the sound by 8-12 Db (according to my phone app that I used). I no longer hear the printer outside of the room it is in. The paver is on 1/4" foam.
Place the clamps towards the middle of the threaded rods (I would recommend 4 clips) to allow slight deflection to get into the detent of the clip. The bracket will be centered at the edge of the rod. The holes allow for a M3x18 that just threads right in.
