Original design belongs to pheneeny . I am grateful for that. I create a remix for Thingiverse, because i changed some parts and i want to upload the needed files easily.

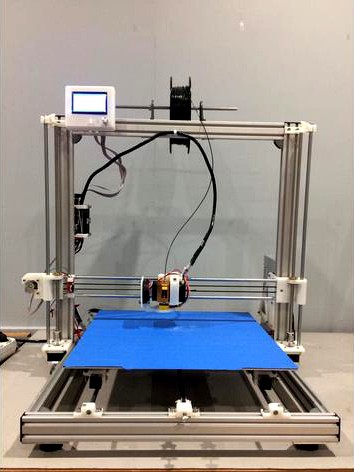

The printable area of my new 3d printer is 40x40x35 cm.
Heatbed: https://www.aliexpress.com/item/32904171739.html?spm=a2g0s.9042311.0.0.10f84c4d6jZKCX
Removal Spring Steel: https://www.aliexpress.com/item/4000061686628.html?spm=a2g0s.9042311.0.0.10f84c4d6jZKCX
I used MK8 extruder.
The links for the parts i prefer to use are below:
Y carriage: https://www.thingiverse.com/thing:3270663 by mukha521
LCD: https://www.thingiverse.com/thing:1262136 by vtoryh
I also added stls of joint parts for mounting LCD on aluminum extrusion.
PCB case: https://www.thingiverse.com/thing:989845 by vtoryh
PCB fans (2 fans-40x40mm) plastic parts: https://www.thingiverse.com/thing:1174589 by steba
PCB fans grid: stl file is attached
Power Supply Case (for 12V, 360W PS): https://www.thingiverse.com/thing:4611697 by Redflag1972 (my design :-)
X axis left part (motor side): https://www.thingiverse.com/thing:1428253 by Simhopp
X axis right part (x-idle) is attached (remixed from Simhopp's design
X axis middle part (carrier): https://www.thingiverse.com/thing:607891by AndrewBCN
MK8 Holder:https://www.thingiverse.com/thing:1815025 by othonr
Turbo Fan Holder: stl file is attached
Turbo Fan Center Nozzle: https://www.thingiverse.com/thing:2305368 by tinkertomsthings
Spool Holder: stl files are attached
Endstops (limit switces having a led on small pcb):
X-axis Endstop: https://www.thingiverse.com/thing:1037870 by toolson
Y and Z-axis Endstops: stl files are attached
Y-rod holder (next to the switch): stl file is attached
Cable clips for extrusion aluminum: https://www.thingiverse.com/thing:2673266 by TalynTechnologies
I recommended to use mosfet modules or proper solidstate relays (suitable for DC loads) for heating outputs.
Needed Aluminum Extrusion Profiles:
20x40 mm Profiles:
2x595 mm for vertical frame
1x510 mm for vertical frame
2x580 mm for horizontal frame
2x510 mm for horizontal frame
20x20 Profiles:
2x400 mm for Heatbed
2x285 mm for Heatbed
1x470mm for cable transfer
I would like to thank the designers who have the links above and made life easier for us.
