ANET A8 Raspberry PI3 support (KISS) by aeropic
by Thingiverse
Last crawled date: 4 years, 12 months ago

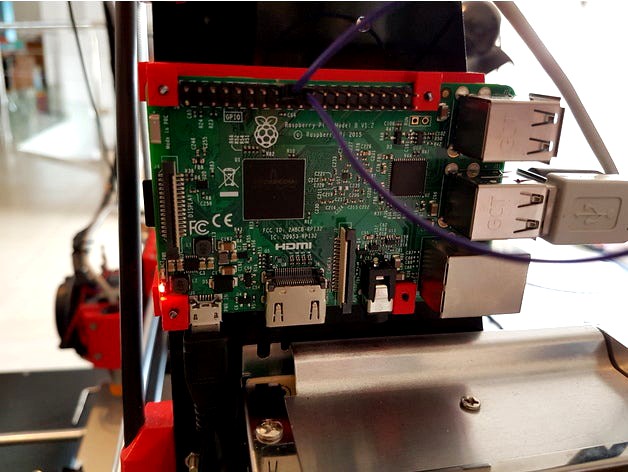

A Keep It Smart and Simple support for a RPI3 that fits the right side of your ANET A8.
Print the top and bottom parts, enlarge the holes at 2mm
Slide your PI3 and insert a small bit of filament to secure the PI in place. Trim with a cutting plier.
Do the same for the bottom.
Then slide it on the vertical plate above the PSU.
The power port is accessible, the SD card too and the USB ports will be behind the printer !
derived from the original idea here : https://www.thingiverse.com/make:441914
Should you want to remove the supports from the PI, just push the bits of filaments...
