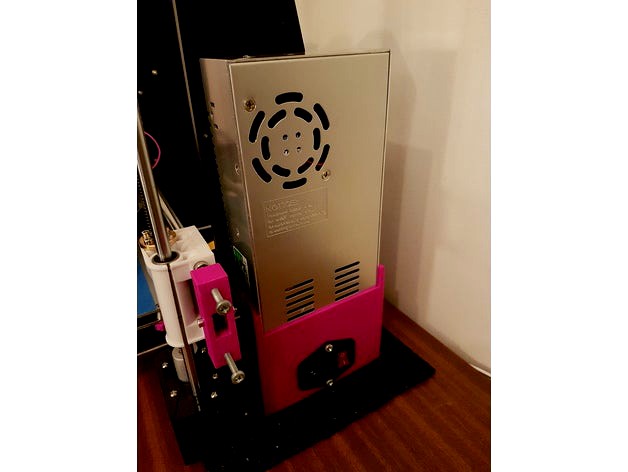

An Anet A8 PSU mount and stand for a JoyNano 360W PSU. Created because I couldn't find a stand that fitted this JoyNano PSU.
PSU: https://www.amazon.co.uk/dp/B01GX2DYAQ/ref=cm_sw_r_cp_ep_dp_nsp4ybFHGT57G
Switch: https://www.amazon.co.uk/dp/B01GX2DYAQ/ref=cm_sw_r_cp_ep_dp_nsp4ybFHGT57G
2 x M4 10mm + nut for switch
3 x M4 10mm for stand
4 x M4 4mm for mount (mount to PSU)
4 x M3 10mm for mount (mount to Anet A8)
Although this was a new design in Fusion 360, I created it after printing out and using ideas from the following:
Switch holes:http://www.thingiverse.com/thing:2000523
X axis stepper motor cable hole & switch hole:http://www.thingiverse.com/thing:1474108
