ANET A8 interchangeable extruder, fast dismantling by charlye98
by Thingiverse
Last crawled date: 4 years, 1 month ago

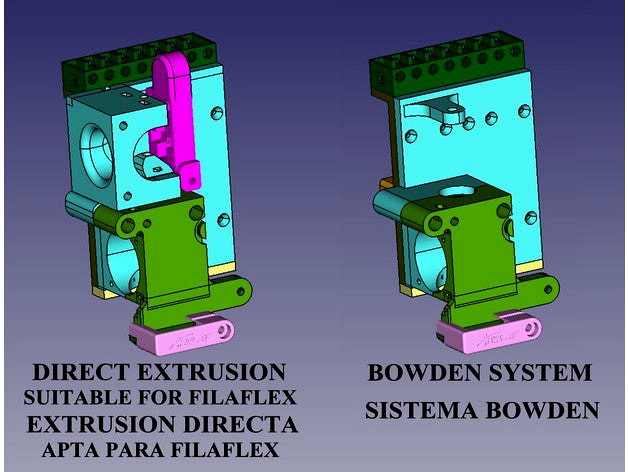

Possibility of mounting any extruder on a standard support for ANET A8.
Easy disassembly to repair the fuser outside the printer.
In the trigger that presses the filament it is necessary to mount a bearing 625 rs.
The dimensions of the bearing are 16x5x5 mounted on an axis of 5 mm diameter and 16 mm in length with a washer on each side of the bearing.
The drive gear is an Mk8.
Posibilidad de montar cualquier extrusora en un soporte estándar para ANET A8.
Fácil desmontaje para reparar el fusor fuera de la impresora.
En el gatillo que presiona el filamento hay que montar un rodamiento 625 rs.
Las medidas del rodamiento son 16x5x5 montado en un eje de 5 mm de diametro y 16 mm de longitud con una arandela a cada lado del rodamiento.
El engrane de arrastre es un Mk8.
https://www.youtube.com/watch?v=OVP_qGg6SAA
https://www.youtube.com/watch?v=b4JF2od9CVc&feature=youtu.be
https://es.aliexpress.com/item/5pcs-MK8-MK7-Extruder-Drive-Gear-Bore-5mm-For-1-75mm-and-3-0mm-Hobbed-Gear/32625516851.html?spm=a219c.10010108.1000014.6.1c34d3e1Wj0YM4&traffic_analysisId=recommend_3035_null_null_null&scm=1007.13338.80878.000000000000000&pvid=aaa21e4d-7f4b-43cd-817e-d72b3fedd24d&tpp=1
https://es.aliexpress.com/item/J-head-Hotend-Extruder-Kit-For-V6-3D-Printers-Part-Cooling-Fan-Bracket-Block-Thermistors-Nozzle/32804944554.html?spm=a219c.10010108.1000014.5.4960200cwPg5bf&gps-id=pcDetailBottomMoreOtherSeller&scm=1007.13338.98466.000000000000000&scm_id=1007.13338.98466.000000000000000&scm-url=1007.13338.98466.000000000000000&pvid=6b3fecca-fb35-4691-86d0-17cdca4a5bee
