Anet A8 end print alarm box V2.

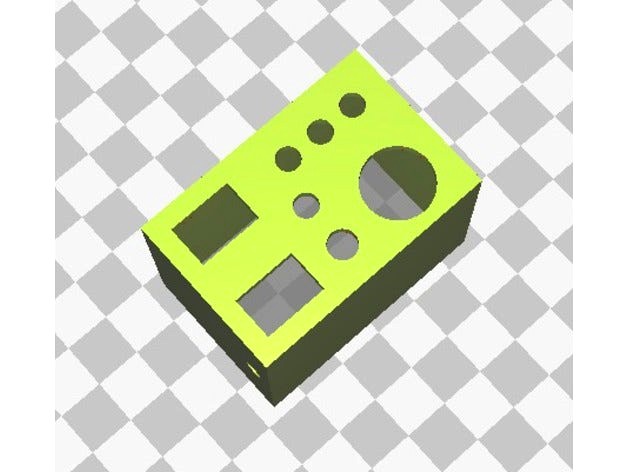

This is a box to hold the eletronics for a end print alarm.
It fit's in a nice and pratical place.
Can hold two power switch, a buzzer, seven 4mm led and a push buttom. Have a hole to wires.
In this version use only 5mm leds and have a second place to put a second switch.
In my case I use a ATtiny85, six high intensity red leds, a 12V buzzer and a blue led.
I use the zero X axis sensor to send a pulse to the ATtiny and trigger the alarm. When it's on, push the buttom to engage the sistem. When triggered it beeps five times or until the button is pressed. If engage and the button are pushed a second time, when triggered, will beeps until the button pressed.
The blue light show the mode and the red turn on with the buzzer.
I put a 433Mhz RF too.
It is a simple way to be alerted when the process ends.
