Anet A8 corner clip by Rainerlan_2
by Thingiverse
Last crawled date: 4 years, 5 months ago
Usage

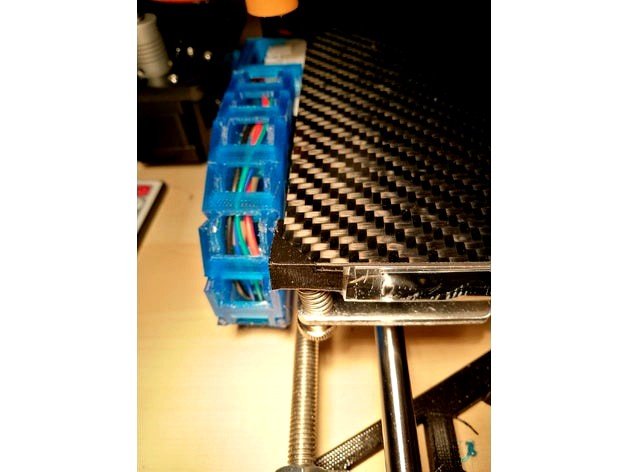

Clips an 1mm CFK plate (220x220) onto the A8's normal heating bed.
CFK plate and heating bed together together, having a thickness of approx 4.2mm.
Use same corner 4 times. No additional material needed.
Installation
No need to diassemble the plate nor the heating bed, screw or spring. Just push down the spring from the beds bottom towards its carrier using a pliers or a screwdriver. Then snap-in the corner and release the spring.
After spring has been released, the corner will be held in place by the spring.
Pros
Very tiny CFK plate holder which is unlikely to collide with any parts attached to the printer head as eg. bed level sensor, cooler ducts or the like.
