Anet A8 cooling pcb case by harty911
by Thingiverse
Last crawled date: 4 years ago

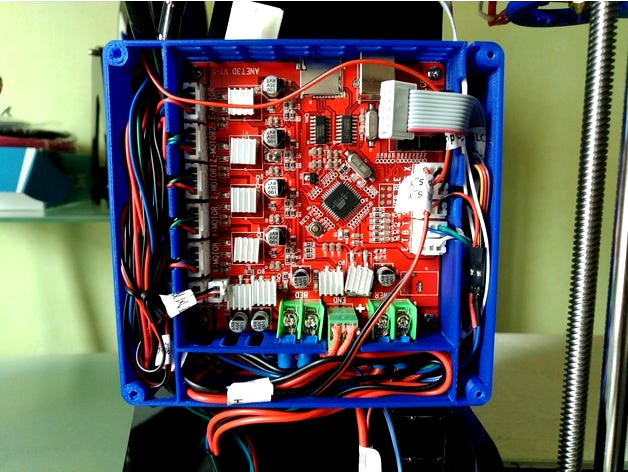

This is a case for original Anet PCB. with two main features for this case :
Cooling the board hot points (Motor drivers, Heating transitor, etc...)
To get rid of all the "Wire Jungle".
I used a 80mm Noctua fan wired to the "Power" connector.
For the PCB and cover fixing, I reused small screw (<10mm) comming from ABS common household electronics..
Before mounting this case, please check the version of your X-motor support part (provided photo). I reserved 2mm space (from the X-endstop sensor) and I know there are differents versions of this X-motor support part....
Cooling the board hot points (Motor drivers, Heating transitor, etc...)
To get rid of all the "Wire Jungle".
I used a 80mm Noctua fan wired to the "Power" connector.
For the PCB and cover fixing, I reused small screw (<10mm) comming from ABS common household electronics..
Before mounting this case, please check the version of your X-motor support part (provided photo). I reserved 2mm space (from the X-endstop sensor) and I know there are differents versions of this X-motor support part....
