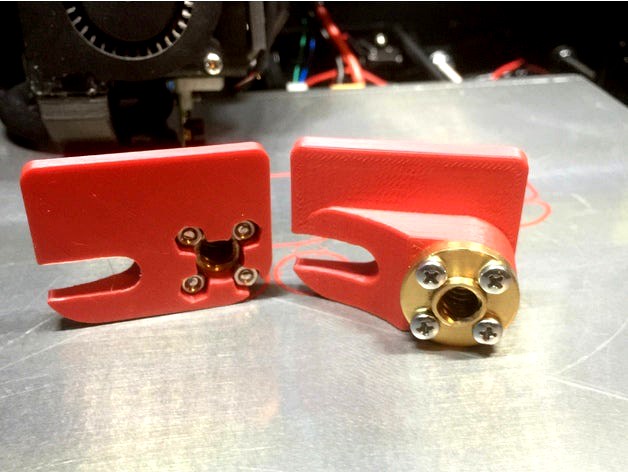

Anet A8 - Anti Z Wobbel TNG (Set) by OderWat
by Thingiverse
Last crawled date: 4 years, 7 months ago
After printing the original anti-z wobble for the Anet A8 I found out that it is a bit to small to fit the original screws. It also is a combination of two other volumetric objects which does not slice really well with Simplify 3D.
Because I had no bearings at head I printed some dust caps for the z-axis hole in the top of the frame. To make them a guide for the z-axis I heavily scaled their original design.
Now as those stuff is working fine I thought I create a set for this modification which prints out of the box without any hassle. After more than 20 iterations I think I am done now!
I also included the raw fusion 360 files for anybody who wants to change the design.
My version does not use the original models but for reference. It was build from ground up and later even changed quite substantial. Many thanks for all people which experimented with that kind of mod!
Update: Fixed the model so it will be sliced by Slic3r, Cura and Simplify3D
