AMD R9 290X TRI-X NOCTUA NF-A12X15 Bracket Mount Holder by MOTIVECODEX

Last crawled date: 4 years, 8 months ago

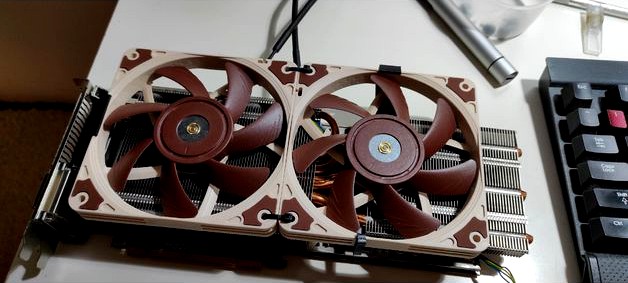

Prototype version, fits the Sapphire R9 290X Tri-X OC with two Noctua NF-A12X15. I tried this setup out to reduce noise and improve temps, but the temps increased with 4 degrees Celsius, making the top GPU 94 degrees. Noise was reduced. I put the stock cooler back on the GPU, since it cools better. The brackets screw on the 4 screws that was previously holding the old yellow stock fan case.
Printed mine with 80% infill, holes are for references, drill with 1 or 2 mm drill bits for the stock screws to screw in. Flip the prints to the side to print, without support, without raft or brim.
