Aluminum Window Screen Frame Mitered Corner Connector by wdcIII
by Thingiverse
Last crawled date: 4 years, 4 months ago

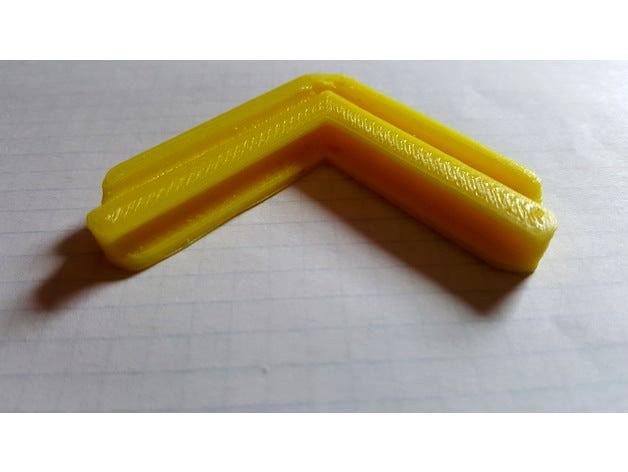

This is an internal corner connector for mitered aluminum window screen frames.
This is for 3/4" x 5/16" (external) aluminum frame. There are many styles of frame so please view the pictures to compare the shape with yours. I printed it in ABS with a 0.6 mm nozzle at 0.2 mm layer and 20% infill and it is quite strong. The grey part pictured is what this part replaces. The semi-circular groves are simply to reduce surface area to lessen friction and binding. To assemble it is best to stand the part upright on a hard flat surface and push the frame down onto the part. Trying to push the part into the frame may break the part, bend the frame, or run the frame through you hand.
Use at your own risk. If this causes your house to implode, explode, or fractures the space-time continuum I'm not responsible. If it brings peace on Earth, contact with aliens, communication with animals, or other good things I'll take all the credit.
This is for 3/4" x 5/16" (external) aluminum frame. There are many styles of frame so please view the pictures to compare the shape with yours. I printed it in ABS with a 0.6 mm nozzle at 0.2 mm layer and 20% infill and it is quite strong. The grey part pictured is what this part replaces. The semi-circular groves are simply to reduce surface area to lessen friction and binding. To assemble it is best to stand the part upright on a hard flat surface and push the frame down onto the part. Trying to push the part into the frame may break the part, bend the frame, or run the frame through you hand.
Use at your own risk. If this causes your house to implode, explode, or fractures the space-time continuum I'm not responsible. If it brings peace on Earth, contact with aliens, communication with animals, or other good things I'll take all the credit.
