ADXL345 mount for Artillery Genius / Sidewinder X1 by aapalo
by Thingiverse
Last crawled date: 4 years, 4 months ago

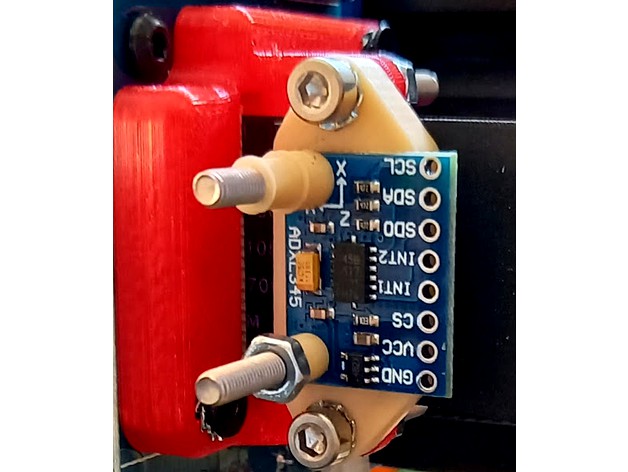

Mount for the ADXL345 accelerometer: attach to a ribbon cable strain relief with two M3 bolts (I used M3x20, will probably replace them with shorter ones at some point).
Standoffs not mandatory, but will hopefully prevent the nut from touching any components.
Provided stls (they have different distances between the outer holes):
Artillery Genius strain relief
genius_adxl.stl
Sidewinder X1 svandru
x1_svandru_adxl.stl
Sidewinder X1 hara74
x1_hara74_adxl.stl
See my github for more info and files (including the adxl.scad).
