adxl345 and ESP8266 / LoLin g-force sensor by Jori
by Thingiverse
Last crawled date: 4 years, 8 months ago

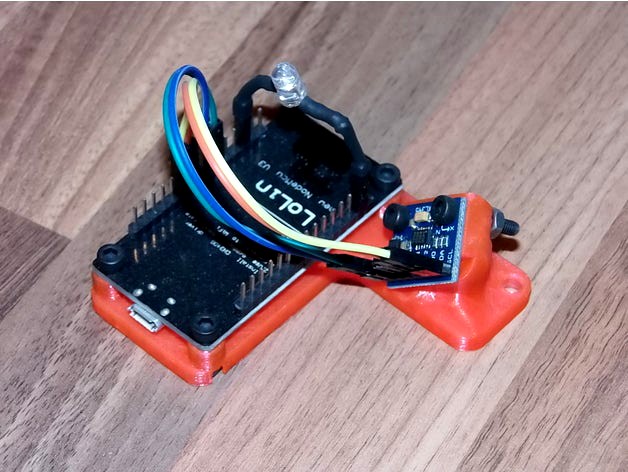

This print takes a LoLin ESP8288 module along with an adxl345 g- force / acceleration sensor.
The sensor is tilted by 45° in all three axis. Like this, the accelerations measured in all axis can be combined to get a better resolution in z direction.
Goes together with a couple of M3 nuts and bolts.
ESP8266 and sensor Modul are "upside down" to directly use jumper wires.
Designed in Onshape;
public link to CAD - source files attached:https://cad.onshape.com/document-redirect.html?d=/documents/758ecacadb659540c7dc48a9/w/1be7207027d9de08f9a02bff
The sensor is tilted by 45° in all three axis. Like this, the accelerations measured in all axis can be combined to get a better resolution in z direction.
Goes together with a couple of M3 nuts and bolts.
ESP8266 and sensor Modul are "upside down" to directly use jumper wires.
Designed in Onshape;
public link to CAD - source files attached:https://cad.onshape.com/document-redirect.html?d=/documents/758ecacadb659540c7dc48a9/w/1be7207027d9de08f9a02bff
