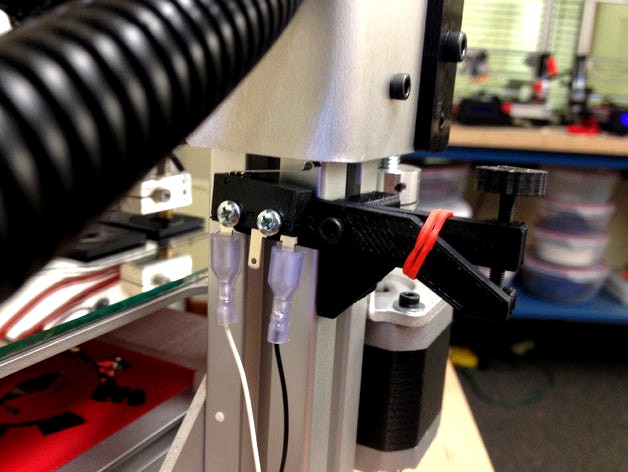

Adjustable Z Limit Switch by OpenSourceClassroom

Last crawled date: 5 years, 2 months ago

This simple little device allows fine tuning of your adjustable Z limit switch. Add a little rubber band to help keep the bottom plate in contact with the screw.
Installation -
(1) M5x12 socket cap crew with washer and T-nut.
(1) M3x16 socket cap screw with washer for hinge.
(1) M3x20 socket cap screw with knob tiny for adjustments to limit switch.
