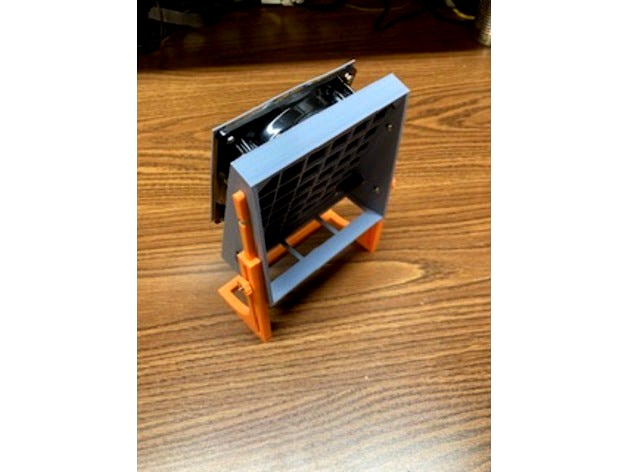

This is an adjustable add on stand for nrp's Solder Fume Extractor https://www.thingiverse.com/thing:17086 .
Print one bracket and two bracket inserts.
It has been designed to use M3 hardware. You'll need four M3 hex nuts, two 8mm screws and two 20mm screws. Assemble using the two 8mm screws at the top and the 20mm screws on the bottom.
Select which type and size of knobs you wish to use that fit an M3 hex nut. I used a set from this group https://www.thingiverse.com/thing:641854 .
Designed in FreeCAD.
