(Update 2015-08-20) Added 12mm Prox holder.. as you never know what you'll get from ebay.
(Update 2015-06-18) Corrected some alignment issues in the carriage and idler as well as changing the proximity holder/idler to use M4 screws as it seems to be easier to get longer ones.
Added the Gears in the list as well.
(Update) Sorry forgot to export stl with modifiers on the hotend mounting block . The beveling helps to fit easier with less sanding.

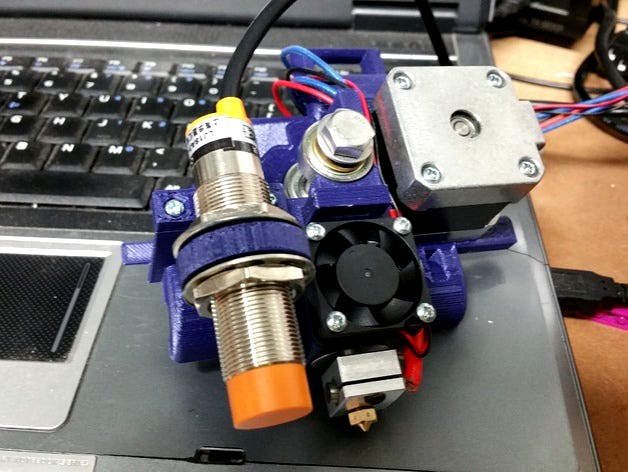

I have modified the Adapto X Carriage LM10UU to fit the E3D-V6 Universal 1.75 Hotend. This modification features a mounting block which should fit nice and snug to hold the hotend in place but allows for easy removal, as well as an extra mounting hole for installation of a proximity switch holder, and tab to pick up a opto endstop
Also included in this post is the .stl for the Idler, opto endstop holder, Proximity switch holder, and the mounting block.
Adapto is a simple straight-forward 3D printer build and can be found at https://github.com/rotorit/Adapto OR http://reprap.org/wiki/Adapto
If you like what you see please feel free to leave a tip: http://modernwebsitesolutions.com/resources/tipjar.html
