Adafruit TFT 3.5" FeatherWing Housing / Enclosure (480x320) by Empor
by Thingiverse
Last crawled date: 4 years ago
Update - 11th of March 2020: Added separate files for cover and case.
Update - 21st of May: Counter sunk the screws of the cover - in 35v12.stl

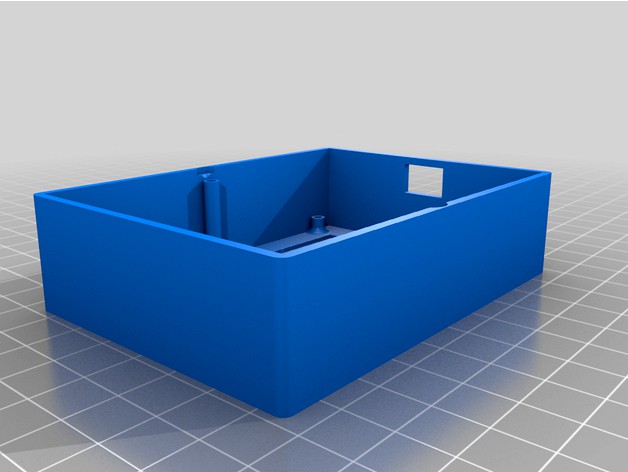

Created a housing / enclosure for the Adafruit 3.5" TFT FeatherWing. Has enough space to carry an Adafruit Feather. I tested it with the Adafruit HUZZAH32 - ESP32 Feather. Spacing for the Micro USB plug should be sufficient for most cables.
M2.5x6 screws fit nicely - 6 of them required: 4 for the featherwing and 2 for the cover.
Update - 21st of May: Counter sunk the screws of the cover - in 35v12.stl
Created a housing / enclosure for the Adafruit 3.5" TFT FeatherWing. Has enough space to carry an Adafruit Feather. I tested it with the Adafruit HUZZAH32 - ESP32 Feather. Spacing for the Micro USB plug should be sufficient for most cables.
M2.5x6 screws fit nicely - 6 of them required: 4 for the featherwing and 2 for the cover.
