Adafruit Matrix Portal Back Case by twistedgeek
by Thingiverse
Last crawled date: 4 years, 11 months ago

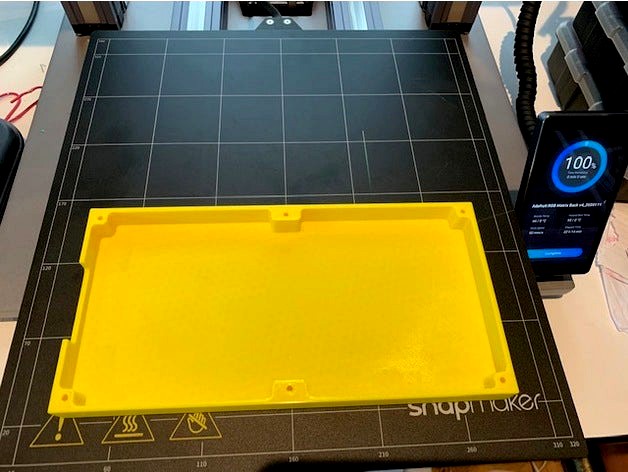

A back cover for the Adafruit Matrix Panel 32x64 as seen here - https://www.adafruit.com/product/2278
The back cover protects the wires and matrix portal board in the back of the matrix panel.
The panel was included in the October 2020 Adabox 016 kit here - https://www.adafruit.com/product/4812
Make sure it is for the 32x64 panel RGB matrix 4mm pitch which measures 255mm x 127mm.
To attach onto the matrix panel use (6) M3x16 screws.
The print has a slot for the control board to extend out the one side.
About a 24 hour print on normal quality.
