Acrobrat XT30 Front Mount
by Thingiverse
Last crawled date: 5 years, 2 months ago

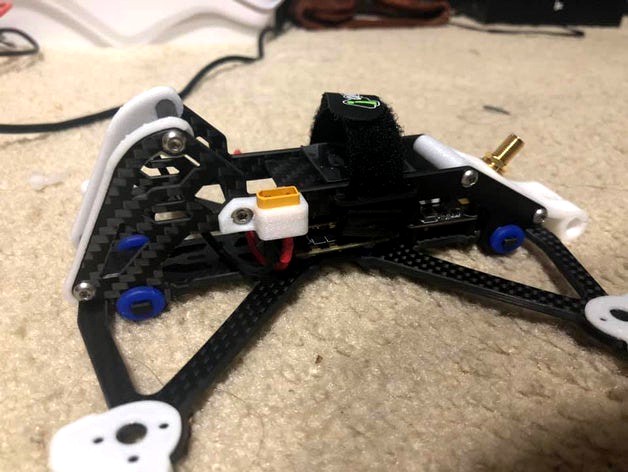

i noticed others designed something similarly, but those required drilling the top plate to install a zip tie and used excessive material. So i designed a lightweight xt30 front mount that does not require modifications to the frame to be done.
printed in tpu and it is a press fit.
printed in tpu and it is a press fit.
