Abus Granit Extreme 59 (SH 59) - Clamp-Mount for Haibike Xduro 2017 by Tomblarom
by Thingiverse
Last crawled date: 4 years, 4 months ago

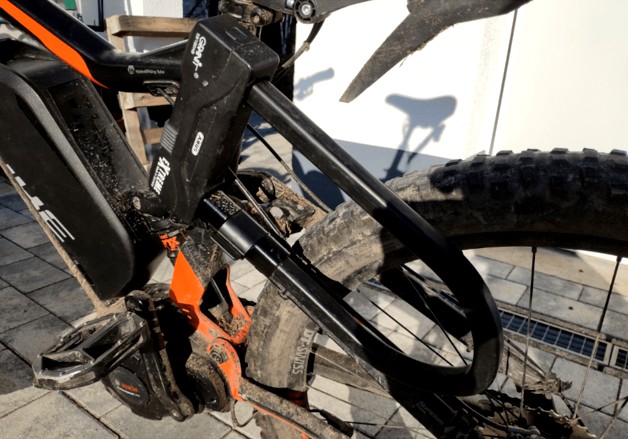

Since the bike I planned to use my Abus Granit Extreme 59 with is a full-suspension ebike, I had to find another way, to mount the SH 59. I designed this clamp-solution which is clamped together using 2x M5 + Nut + Washer. I added "3M Scotch VHB" to prevent the middle piece from sliding around.
