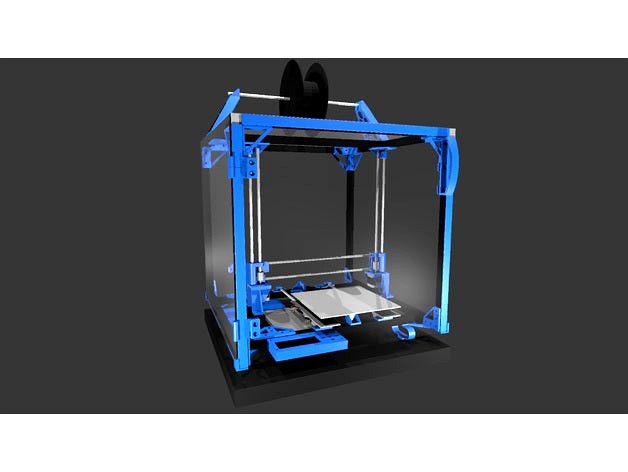

A8 Cube Frame by Sotnax
by Thingiverse
Last crawled date: 4 years, 12 months ago
UPDATE 3-22-2018
Several files have been updated after testing. Still ironing out the details though.
I decided i liked the idea of the AM8 frame but also liked the self enclosed 3D printers out there. I created this enclosure/frame to give me the best of both worlds. 2020 extruded aluminum was used and all parts are set to use M5x10 Button Head Socket Screws with T-Slot nuts.
The final design rises the Z rails and carriage up a bit giving the build volume more height.
The Z motor couplers will slide next to the stock X carriages with the exception that the right (non x motor) carriage had to be Dremmeled a bit to thin the wall.
The acrylic panels rest in slots in the corners and 3x10mm magnets hold them at the top. The magnets are on order so I haven’t tested the parts for final fit yet.
The extruder carriage has much more clearance for upgradability .
I have most of the printer assembled and will add photos and more details as I finish installing the clear panels...
To do:
-I plan to redesign the Electronics enclosure to be more sturdy - Obsolete (see below)
-I may try moving the electronics under the bed somehow, but that may not happen - COMPLETE
-Final touches on acrylic panels
-Create of BOM
-List other creator's parts that are also used to create this printer
-Instructions
-Glam Shots of finished printer
Credit where it's due: Several components were either taken from or heavily influenced by other designs. That said, the final design is far from the original AM8 and other influences were heavily modified.
