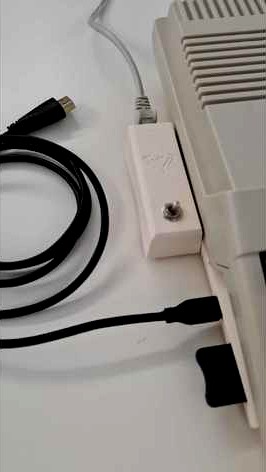

A500 Side expansion port with microhdmi, sdcard, network and switch by Larsih
by Thingiverse
Last crawled date: 4 years, 11 months ago
Needed a little tidier handling of all the cables that I have connected internally in my amiga 500.
I have a Vampire accelerator, and needed somewhere to put the hdmi, network and sd card holder. In addition, I have a switch to change the dfo / df1 disk drive.
So i modeled this little thing.
Print the four pieces (Addon, ExpansionPort, clip and bottom lid) and assemble it with som screws:
Two M2x10 mm screws to connect the box with the expansion door
Two M2x6 mm screws for the microhdmi clip
Four M2x6 mm screws for the bottom lid
Take a look at the pictures for some visual descriptions.
You should use just a little force when you snap the ENC28J60 Ethernet Module into place.
The Micro HDMI connector socket is designed to hold the Micro HDMI Type D Female FPC Connector Socket with a flat cable. Search ebay for "Micro HDMI Type D Female FPC Connector".https://www.ebay.com/sch/i.html?_from=R40&_trksid=p2047675.m570.l1313&_nkw=Micro+HDMI+Type+D+Female+FPC+Connector&_sacat=0
You will also need one flat cable (FPC Flat HDMI Ribbon Cable) and one HDMI Type A male connector socket (HDMI Type A FPC Connector Socket).
Recommended hdmi cable lenght is 20 cm.
Here is a package with hdmi female, male and cable:https://www.ebay.com/itm/Type-A-Male-FPC-to-CYFPV-Straight-HDMI-Female-Flat-Cable-for-HDTV-Multicopter/382598636360?ssPageName=STRK%3AMEBIDX%3AIT&var=651361237516&_trksid=p2057872.m2749.l2649
I have this as my microsd extender (25cm):https://www.ebay.com/itm/New-25cm-Micro-SD-Memory-Card-Slot-to-TF-Card-Extender-Cable-Extension-Linker/303304935817?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2648
This is the switch i'm using:https://sordan.ie/product/530/boot-selector-df0df1-df1df0-signal-sel0-from-sel1-amiga-500/
But you can of course use a switch to whathever you like as long as it fits :)
And this is a nice microhdmi to hdmi cable:https://www.ebay.com/itm/150cm-Micro-HDMI-Male-to-Standard-Male-Cable-Lead-Full-1080p-Tesco-HUDL-1-2-EU/162120162262?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2648
