8, 16 & 20-pin DIPs - 20-pin PIC18F14K50-I/P by tetralite
by Thingiverse
Last crawled date: 4 years, 7 months ago

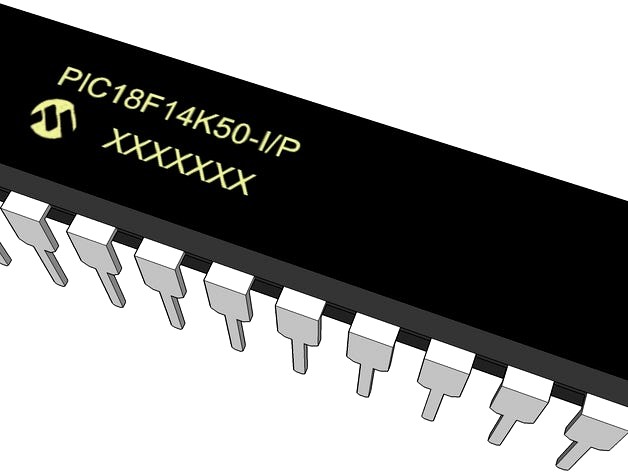

Model of a 20-pin Dual Inline Package with markings for PIC18F14K50-I/P Microchip Microcontroller IC in ,SKP, .STL, .OBJ and .DXF file formats.
Also, 8-pin and 16-pin DIPs in .STL and .DXF formats.The 16-pin is a bit crude, but still okay for PCB layout.
The 20-pin was designed in inches. The 8- and 16-pins in millimeters.
Also, 8-pin and 16-pin DIPs in .STL and .DXF formats.The 16-pin is a bit crude, but still okay for PCB layout.
The 20-pin was designed in inches. The 8- and 16-pins in millimeters.
