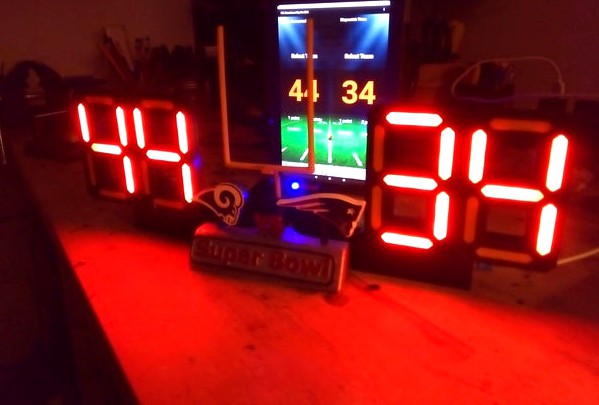

7 Segment stand for a Scoreboard
by Thingiverse
Last crawled date: 6 years, 4 months ago
Uses WS2812B LED strips
ESP32 Dev board - DOIT ESP32 DEVKIT V1 (with bluetooth)
3mm LED (to show when Bluetooth Android Scorboard app is connected)
PushButton (x2) 6x6x10mm
10K resistor (x2)
Print "SB_bottom-plate.stl" as the photo to minimize supports used
The electronics parts / notes / app are on my Hackster.io page here:https://www.hackster.io/jlorentz/
