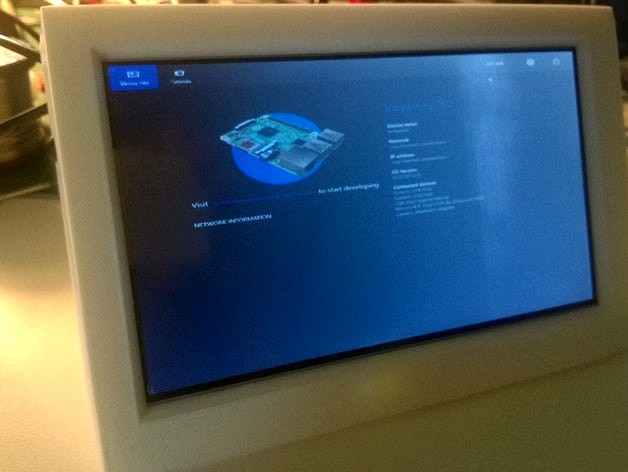

7" LCD desktop stand for Raspberry Pi by toSvenson

Last crawled date: 4 years, 7 months ago

Parts used in this build:

Raspberry Pi 2https://www.raspberrypi.org/


Wifi modulehttp://www.aliexpress.com/item/EDUP-EP-N8508GS-USB-150-Mbps-Wireless-Wifi-Mini-150M-Network-Card-802-11-n-g/32293594529.html


7" LCD Panel (165x100mm)http://www.aliexpress.com/item/Free-shipping-7-inch-Raspberry-Pi-IPS-LCD-Simple-version-With-HDMI-VGA-AV-Screen-Display/32295373598.html


HDMI cable 30 cmhttp://www.aliexpress.com/item/30cm-HDMI-Cable-Cord-Premium-High-Speed-v1-4-For-DVD-PS3-BluRay-HDTV-1080P-3D/32330804022.html


5.5mm power plughttp://www.aliexpress.com/item/Best-Price-10pcs-3A-12v-forDC-Power-Supply-Jack-Socket-Female-Panel-Mount-Connector-5-5mm/32289772493.html


Power Adapter 9V 3Ahttp://www.aliexpress.com/item/Free-shipping-High-quality-1PCS-9V-3A-27W-Led-Power-Adapter-UK-US-EU-AU-plug/1490477557.html

5V Voltage Regulatorhttp://www.dx.com/p/dc-4-5-35v-to-1-25-30v-adjustable-voltage-step-down-module-red-156808#.VY7IPHqqqko
Optional when you want to power the Raspberry Pi through USB:

Power Down Module 7-24V -> 5V 4Ahttp://www.aliexpress.com/item/5V-USB-DC-7V-24V-to-5V-4A-Step-Down-Buck-KIS-3R33S-Module-DC/32240213771.html

USB Cable (short)http://www.aliexpress.com/item/White-Short-V8-Micro-USB-Sync-Data-Charger-Cable-cable-For-Samsung-galaxy-i9300-I9500-Note2/1404552843.html
