5 CYLINDER RADIAL ENGINE by edwilcock007
by Thingiverse
Last crawled date: 4 years, 8 months ago
The radial engine made its first appearance in 1901 when Charles Matthews Manly produced a 5-cylinder water cooled variant.
While more efficient engine designs have greatly reduced the need for radial engines in today’s world, they played a large role in the advancement of aircraft in the early to mid-1900’s as they offered large power outputs while retaining relatively small profiles.
An example being the Pratt & Whitney R-1830 Twin Wasp radial found on the DC-3 with its 14 cylinders in two row formation.
As a reciprocating combustion engine, a radial engine obtains its difference with all combustion cylinders radiating from a central crankcase in coplanar fashion. In order to keep an ‘every-other-piston’ firing order, all 4-stroke radials must have an odd number off cylinders. For 2-stokes, an adequate firing order can be obtained on both even and odd cylinder set-ups.

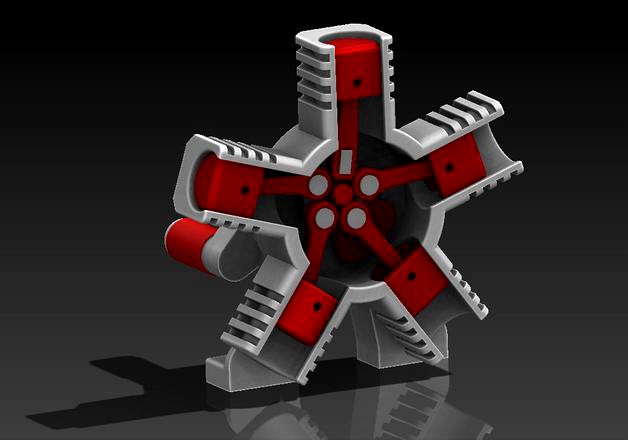

While the pistons in a radial transfer linear motion into rotational motion at the crankshaft, this design takes a rotational input produced by the crank handle allowing for the combustion mechanism to cycle visually.
While more efficient engine designs have greatly reduced the need for radial engines in today’s world, they played a large role in the advancement of aircraft in the early to mid-1900’s as they offered large power outputs while retaining relatively small profiles.
An example being the Pratt & Whitney R-1830 Twin Wasp radial found on the DC-3 with its 14 cylinders in two row formation.
As a reciprocating combustion engine, a radial engine obtains its difference with all combustion cylinders radiating from a central crankcase in coplanar fashion. In order to keep an ‘every-other-piston’ firing order, all 4-stroke radials must have an odd number off cylinders. For 2-stokes, an adequate firing order can be obtained on both even and odd cylinder set-ups.
While the pistons in a radial transfer linear motion into rotational motion at the crankshaft, this design takes a rotational input produced by the crank handle allowing for the combustion mechanism to cycle visually.
