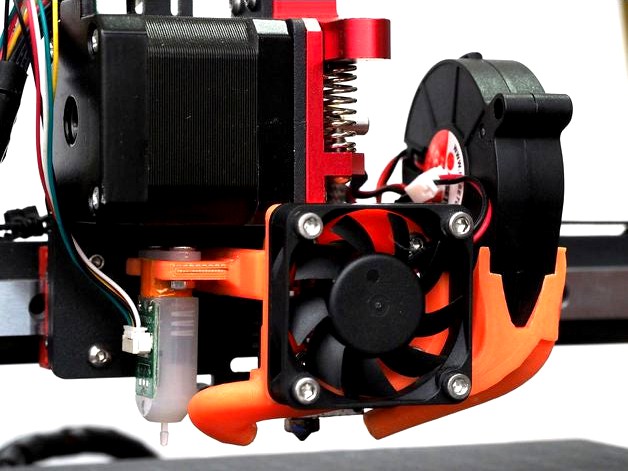

4010/5015/BLTouch bracket REMIX for KINGROON KP3S by hitoriblog

Last crawled date: 4 years ago

Heat sink fan: 4010
Parts cooling fan: 5015
BLTouch Support
Marlin 2.0.7.2
NOZZLE_TO_PROBE_OFFSET { -32.0, 0, 0 }
PROBING_MARGIN 10 // Appropriate value is OK. Marlin 2.0.7.2 automatically calculates the range of motion.
Probing behavior is affected by the value of X in M851 in EEPROM, so make sure it is set to -32.
KINGROON Firmware

X_PROBE_OFFSET_FROM_EXTRUDER -32.0
LEFT_PROBE_BED_POSITION 5
RIGHT_PROBE_BED_POSITION 140
FRONT_PROBE_BED_POSITION 5
BACK_PROBE_BED_POSITION 170

Related Article
Japanese: "初めてのホットエンドファン改造 – KINGROON KP3S情報" http://hitoriblog.com/kingroon_kp3s/docs/mods/silencing/my_first_hot_end_fan_mod/
Google Translated: "My First Hot End Fan Mod - KINGROON KP3S Info" https://translate.google.com/translate?sl=auto&tl=ja&u=http://hitoriblog.com/kingroon_kp3s/docs/mods/silencing/my_first_hot_end_fan_mod/
Change Log
2121.3.24: mounting location of 3D Touch fixed again.
2121.3.23: mounting location of 3D Touch fixed again.
2121.3.22: The height of the probe was wrong, so I fixed the mounting location of 3D Touch.
3DBenchy
As far as I know, it seem to have mastered the output quality of FDM-type printers.



This is a Remix of 4615905
Kingroon KP3S 4010/5015 brackethttps://www.thingiverse.com/thing:4615905
Added BLTouch Support
Bottom surface during print is made flat for easier printing.
The thickness of the thin wall area has been increased to make it easier to print.
If you are using Cura for slicing, please install the Custom Support plugin and add the support manually as shown in the attached image.
