4 node and 5 node raspberry pi cluster with TFT screen and GeekPi cluster case by mrtomich
by Thingiverse
Last crawled date: 4 years, 8 months ago

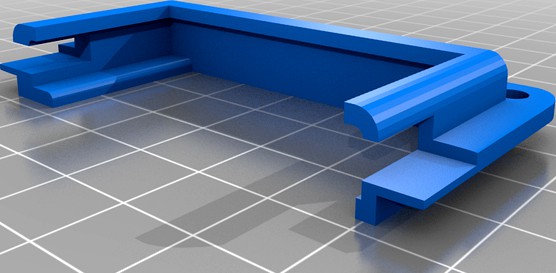

Added another node to my cluster and the Geek Pi Acrylic case was not enough so I made an extension to fit 5 nodes and also a TFT 3.5 inch screen and a noctua 92mm fan.
Thinking on adding more holes to fit additional fans. All Pi fans are NOT connected to GPIO but will be connected to a separate 5v line so I can have only the silent noctua fan but be able to turn them all on for a "fan boost" in case of heavy load.
I'm thinking also on making a small enclosure where i can maybe put cables and the 5v to12v conversor.
I'm using a 5v 50amps PSU so I can add conversors and nodes.
Noctua fan is missing in the pictures
