3DTox - CR-10 Nozzle by 3DModularSystems
by Thingiverse
Last crawled date: 4 years, 8 months ago
Description
This part is to be used with 3DTox product (now available here: http://3dmodularsystems.com/en/3dtox/423-3dtox-le-purificateur-d-air-pour-imprimante-3d.html)
It's an integrated air scrubber that will suck up and filter most of the toxic particles generated by 3DPrinters plastics when printing.
Updates:
2018.05.26 - Added a few pictures + added V2 with slightly different nozzle shape.
2018.05.2018 - adjust tube hole location to prevent the part to hit the end stop
2018.05.2018 - original version
Compatibility
This nozzle tip is compatible with 3Dtox and CR-10 printers with standard hotend system.

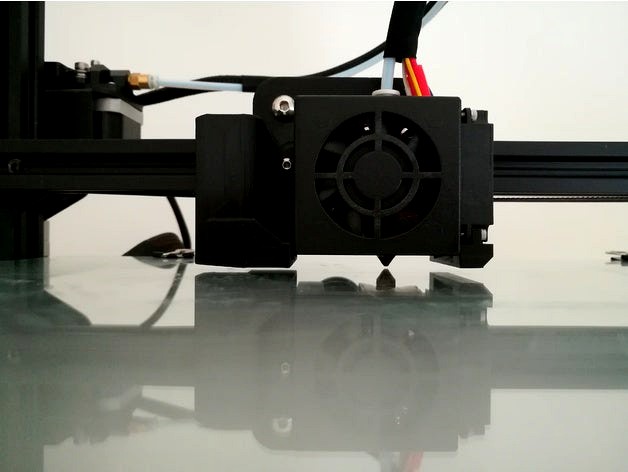

It is designed to be installed at the left of the Hotend holder, behind the original metalic cover.
difference beetween nozzle versions
V1 : Square nozzle tip
V2 : updated Nozzle orientation, in order to suck up the air slightly from the bottom
This was specially designed so that the generated particles are either directly sucked up when the cooling fan is off.
If the cooling fan is on, the airflow will push the generated particles directly inside the air filter nozzle.
Enjoy safe 3D printing!
3D Modular Systems
Evolutive 3D Printers
http://www.3dmodularsystems.com
Twitter: https://twitter.com/3dmodularsystem
Youtube: http://www.youtube.com/c/3DModularSystems3DPrinters
