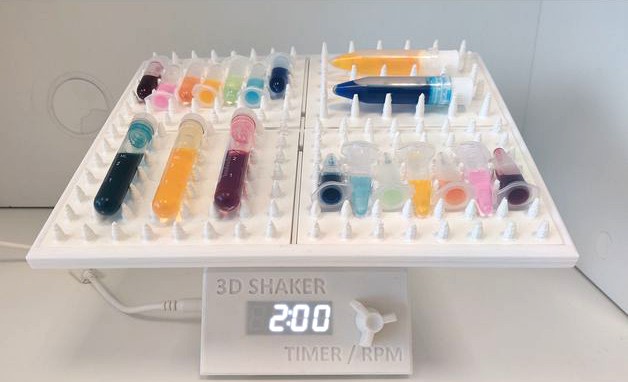

3D Shaker, Nutating Mixer by polihedron

Last crawled date: 4 years, 10 months ago

Made on request of my wife.
It’s a laboratory equipment used to mix, blend, or agitate substances in a tube or vial by shaking them.
Functions:
timer
motor speed control - rpm (quite accurate)
angle adjust by replacing Crankdeg part: 10deg, 15deg, and 20deg
save config: default time and rpm to mcu memory

Video how it's working:https://youtu.be/TyF6TsbwEOg
Code and schematics:https://github.com/polihedron/TM1637_Timer_RPM-stepper_motor
BOM:
4-Digit LED 0.56" TM1637 display
KY-040 rotary encoder
Arduino board: nano, pro micro, pro mini and probably others with enough amount of digital ports, and small enough to fit inside
LM1117 Low-Dropout Linear Regulator module 5V
5.5mm x 2.5mm DC Female Chassis Power Socket
12V 2.5A DC Power Supply AC Adapter with 2.5 x 5.5mm Center (+) Positive Plug (for cameras, routers, household electronics..)
KCD1-104 4-PIN rocker switch 21x15mm
A4988 Stepper Motor Driver
Electrolytic capacitor 1000uF/25V
Stepper motor NEMA 17HS4023
Shock Absorber Dampener for Stepper Motor - 42mm
Joy!Crafts Hook & Loop fasteners round 15mm - 60pc
10x M3 screws
