3D Scanner (Arduino based) by sharanchius
by Thingiverse
Last crawled date: 5 years, 3 months ago

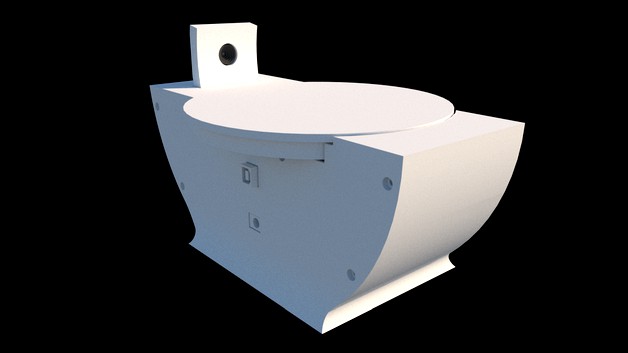

This is very beta version. For rotating table base I used old HDD motor. If you use different motor then you need to redesign Skeneris3-Sasi1 file.
For electronic part I plan tu use Arduino Uno module, two 28BYJ-48 step motors with ULN2003 drivers - found on aliexpress:
https://www.aliexpress.com/item/33017488245.html?spm=a2g0o.detail.1000023.7.e3501d68eX3IOI
For axes I used the sliding axes from old CD-ROM
The camera will be used (still on the transit) - also from aliexpress:
https://www.aliexpress.com/item/4001364078071.html?spm=a2g0o.cart.0.0.a23b3c00TI9J8S&mp=1
The model will be changed - for example there still no hole for camera USB cable connection.
The main idea of working with this scanner is to use photogrammetry technique to create 3D model from set of photos with known pamera positions.
