30pin ribbon cable socket clamp Artillery / Evnovo Sidewinder X1
by Thingiverse
Last crawled date: 5 years, 7 months ago

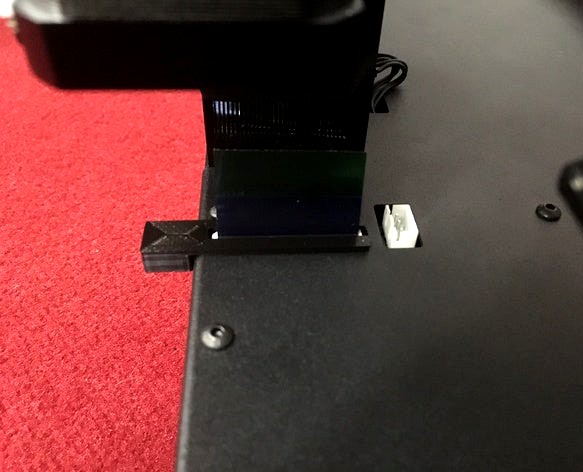

Prototype of a clamp for the Sidewinder X1 30pin ribbon cable connector on the buttom. Forces the connector to be straight.
Mine was bend out and had contact problems, which lead into a burned ribbon cable.
I've cut my cable a little bit shorter, applied this clamp and now my printer is working again.
May need some tweeking because if assembling tolerances.
Snug / tight fit!
Print with the flat side down
