2x4 Deck Railing Support Bracket by xboxhacker
by Thingiverse
Last crawled date: 4 years, 10 months ago
Supports for 2x4 railing for your wooden deck project. Similar parts can be bought from the big box home improvement stores. I custom designed the stair rail brackets to hold the rail at 30 degrees (most common for decks). Store-bought brackets DO NOT do this. ;)
This has 3 thing files:
-90 Degree Bracket (most common)

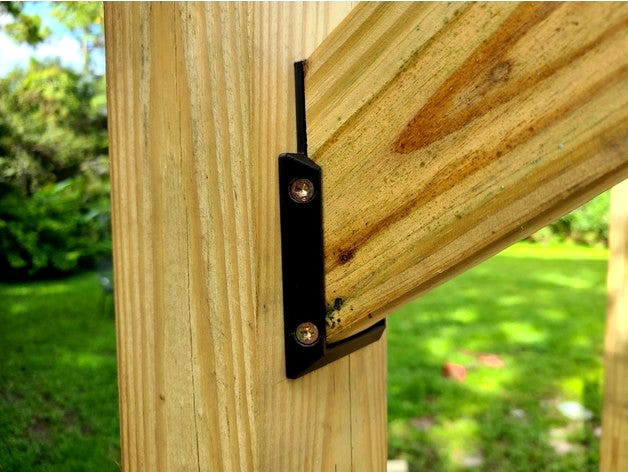

-30 Degree Top Bracket (for high side stair railing)
-30 Degree Bottom Bracket (for low side stair railing)
For stair railing, you will need one top and one bottom for each 2x4!
For horizontal railing, you will need to print two 90 degree parts for each 2x4!
Use flat head 2" Construction Screw wood screws to mount everything. (6 each bracket)
DO NOT USE IMPACT TO DRIVE THE SCREWS!! Use a drill/driver and set to a low clutch setting to start with, to test it out.
The sides are cut back to accommodate a wooden handrail.
I used ASA black filament for this project due to its great UV stability.
Your results may vary.....
If you like this and find it useful, please consider buying me a beer (I am beer operated)
