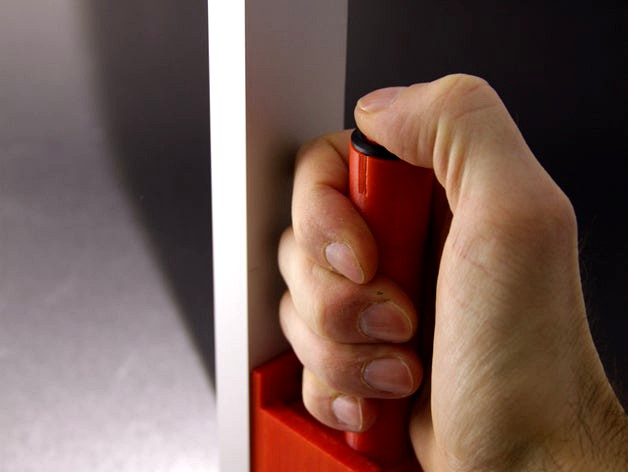

25CMLED is a DIY LED torch light for makers.
It consist of an aluminum profile with SMD LEDs and a number of 3D printed parts that serve as battery pack holder and grip.
This thing is presented by blink*gestalten (www.blinkgestalten.de).
Part List:
6 SMD LEDs
approx. 1 m copper band (acting as circuit path)
some wires
toggle switch
battery clip
battery pack for 6 AA cells
3D printed parts (battery pack holders and grip)
4 M3 screws, 10 mm
1 M3 screw, 16 mm
1 M3 screw, 18 mm
aluminum profile (length 25 cm, profile dimensions B x H1 x H2: 40 mm x 15 mm x 40 mm)
Note that the complete assembly instructions are beyond the scope of this thinigiverse thing. Therefore the instructions cover only the assembly of the 3D printed parts. If you want to learn how to assemble the SMD LEDs, feel free to visit my LED lamp workshop at FabLab Munich (http://wiki.fablab-muenchen.de/display/WIKI/Programm).
Note: the design was inspired by the torch light described in this book:http://www.amazon.de/LED-Wohnraumlicht-Band-1-1-S-Leuchtenberg-ebook/dp/B00C1NLIDM/ref=sr_1_2?ie=UTF8&qid=1420539212&sr=8-2&keywords=wohnraumlicht
