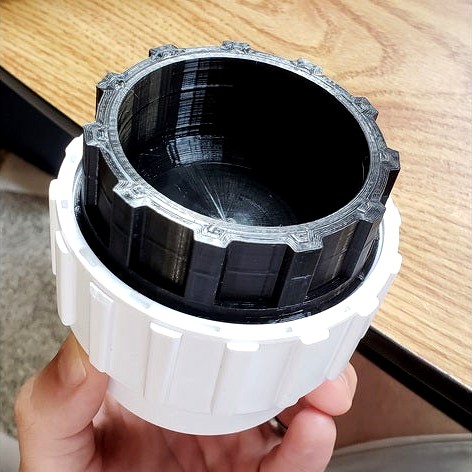

2" Spa Pump Blanking Plug by MechEnginerd
by Thingiverse
Last crawled date: 4 years, 10 months ago
This allows for removing a spa pump for maintenance without having to fully drain the spa.
The spa industry calls these 2" fittings, however they are actually 3.09" outer diameter. They use custom 45 degree buttress threads at 8 tpi as shown in the attached graphic (best I could tell, though similar to ANSI 45/7 threads, they are not exactly the same).
I included the solidworks file if you wish to edit.
The spa industry calls these 2" fittings, however they are actually 3.09" outer diameter. They use custom 45 degree buttress threads at 8 tpi as shown in the attached graphic (best I could tell, though similar to ANSI 45/7 threads, they are not exactly the same).
I included the solidworks file if you wish to edit.
