Whenever I build a car, I have to be inspired by something. The Mazda 787B, winner of 1991 24 Hours of Lemans and Group C car, has always captured my eye. With its low slung look, huge rear wing sitting far behind the car, the deep dish Volk rims, and the iconic Renown Livery, it's a sight to behold. Ever since I started making RC cars, I dreamed of making this car.

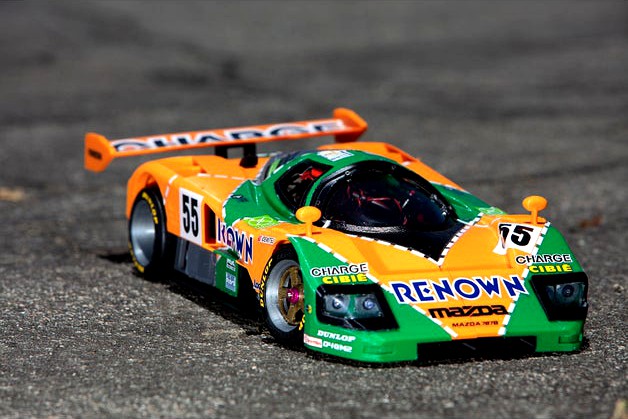

The 1:10 version, is 3d printed in Solutech PLA, shown in bare 3d printed finish and bolted together to form the multicolor paint scheme. The Rims are two piece rims with the front rims having the addition of the white cover that can be added to recreate the historic nature of the car. The Chassis uses a panhard style rear suspension with rear pod and Tamiya F104 rear axle.
I designed and tested the car in Fusion 360.
Manual and Parts List included.
I hope that this 3d RC car can inspire and encourage people to go out and push the limits.
Videos of the real car, so you can understand the stunning allure of the Mazda 787B.
