100mm VESA Offset (40 & 47mm offset) Adapter by viperbite
by Thingiverse
Last crawled date: 4 years, 4 months ago

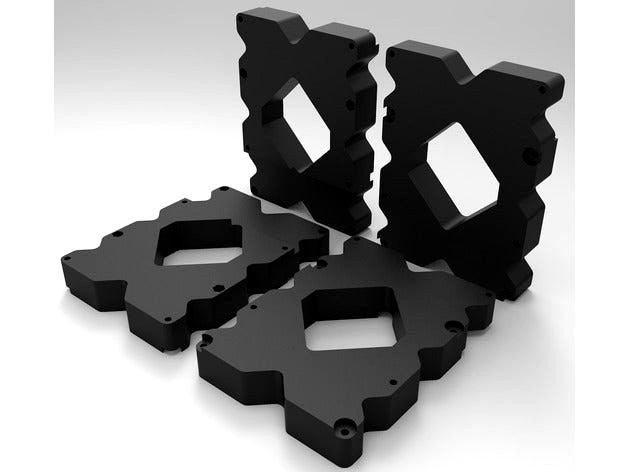

I have 2 dissimilar monitors (one for gaming & a secondary monitor) Their VESA mounts were nowhere near close to lining up. I designed this adapter to align them.
The 40mm offset fits on an Ender 2 bed. The 47mm did not fit.
I designed it to be used with the following hardware:
-4ea - 20mm M4x0.7 hex bolt
-4ea - M4x0.7 nut (I used a wing nut)
-4ea - 25mm to 30mm M4x0.7 screw & m4 washer.
--Be careful going longer than 30mm on this screw as it can bottom out in the monitor and damage it. hand thread it in before torquing to make sure its not going to be a problem.
The hardware is a very tight fit. You might have to drill it out / hammer the hardware in depending on the ooze of your printer.
The 40mm offset fits on an Ender 2 bed. The 47mm did not fit.
I designed it to be used with the following hardware:
-4ea - 20mm M4x0.7 hex bolt
-4ea - M4x0.7 nut (I used a wing nut)
-4ea - 25mm to 30mm M4x0.7 screw & m4 washer.
--Be careful going longer than 30mm on this screw as it can bottom out in the monitor and damage it. hand thread it in before torquing to make sure its not going to be a problem.
The hardware is a very tight fit. You might have to drill it out / hammer the hardware in depending on the ooze of your printer.
