0.96 Inch OLED Display I2C & SPI module mount for PCB by phobic
by Thingiverse
Last crawled date: 4 years, 7 months ago
EDIT - Dec 2016:
The SPI version of this display would not fit this mount since the pin count is 6 on SPI version. I made a new version of the mount for SPI. This also fits the I2C version.

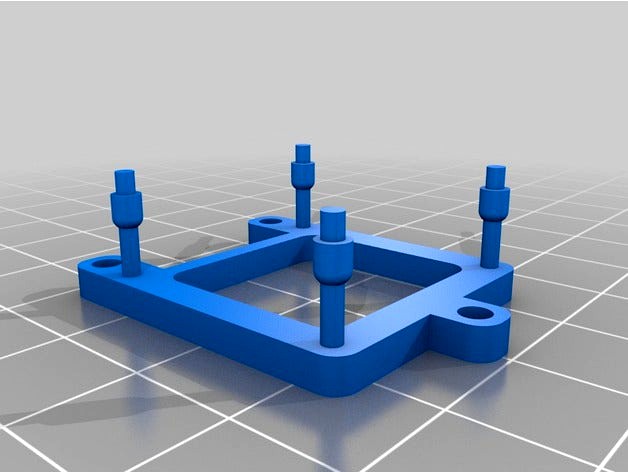

This is a mount for 0.96 Inch OLED Display module mount when using the display on a PCB.
The display is mounted with male pins on display side, and female pins on the PCB side.
These pins equals a height of 10.5 mm over the PCB, this keeps the diplay stabile as the pins are only connected top side.
http://www.banggood.com/0_96-Inch-4Pin-Blue-Yellow-IIC-I2C-OLED-Display-Module-For-Arduino-p-969144.html
